Supports 3.3V/2.5V/1.8V, industrial temperature range application from -40 ℃ to+85 ℃
Supports single 1.8V power supply for all power pins
Support crystal oscillator or external reference clock input
High performance, low phase noise PLL, 250fs RMS typical output phase jitter
Built in 4 sets of OTP, supporting in-house OTP programming
Supports I2C or SPI serial programming interface and hardware mode operation
Support PCIE 1.0/2.0/3.0/4.0/5.0/5.0/6.0 when the display frequency is turned off
Supports PCIE 1.0/2.0/3.0/4.0/5.0/5.0/6.0 under display frequency conditions
All 12 outputs can support LVCMOS/LVDS/HCSL/LP-HCLSL/LVPECL/CML level format outputs
Support programmable output enable/power down mode

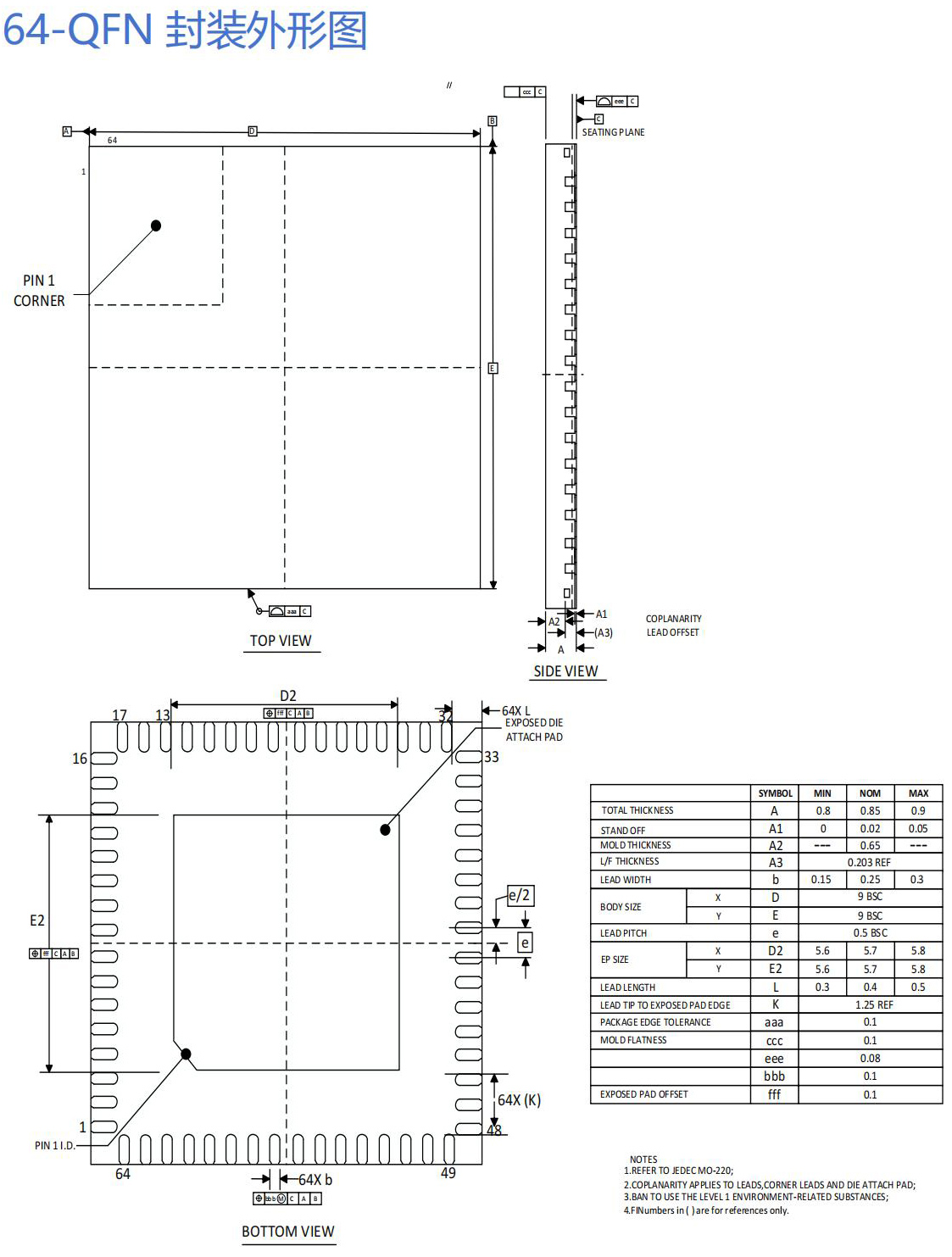

Provide 9 × 9mm 64-QFN package
Support independent output clock power pins: 3.3V/2.5V/1.8V
Output clock frequency range:
Difference: 8kHz~350MHz
LVCMOS： 8kHz~250MHz
